Welcome to FTJ Valve, your leading source for high-quality flow control equipment and accurate technical specifications. If you are searching for precise China DN50 wafer butterfly valve dimensions to complete your piping design, system installation, or procurement plan, you have come to the right place. Our DN50 (2-inch) wafer-style butterfly valves are globally recognized for their compact footprint, superior sealing capability, and compliance with major international standards.
When integrating valves into complex industrial piping systems, understanding the exact dn50 wafer butterfly valve dimensions is essential for accurate alignment and stress-free flange connections. Our DN50 wafer butterfly valves are engineered to meet ISO 5752, API 609, and EN 558 face-to-face standards, ensuring seamless compatibility across global projects.
Key dimensional and structural parameters include:
Nominal Diameter: DN50 / 2 Inch (50 mm)
Face-to-Face Dimension: Standard short pattern compliant with ISO 5752 Series 20 / EN 558 Series 20.
Flange Compatibility: Designed to fit effortlessly between universal flanges, including ANSI Class 150, PN10, PN16, and JIS 10K.
Compact & Lightweight Design: Minimal overall height and face-to-face length, significantly reducing piping stress and installation space requirements.
Detailed 2D CAD drawings and 3D step files for all China DN50 wafer butterfly valve dimensions are available upon request from our engineering team.
Beyond precise dimensions, our DN50 wafer butterfly valves offer robust performance under demanding industrial environments. Manufactured using advanced CNC machining and strict quality controls, each valve features:
Durable Body Options: Available in Ductile Iron (GGG40/GGG50), Carbon Steel (WCB), and Stainless Steel (CF8/CF8M).
Flexible Sealing Materials: Replaceable resilient seats in EPDM, NBR, PTFE, or Viton, guaranteeing bubble-tight shutoff (Zero Leakage).

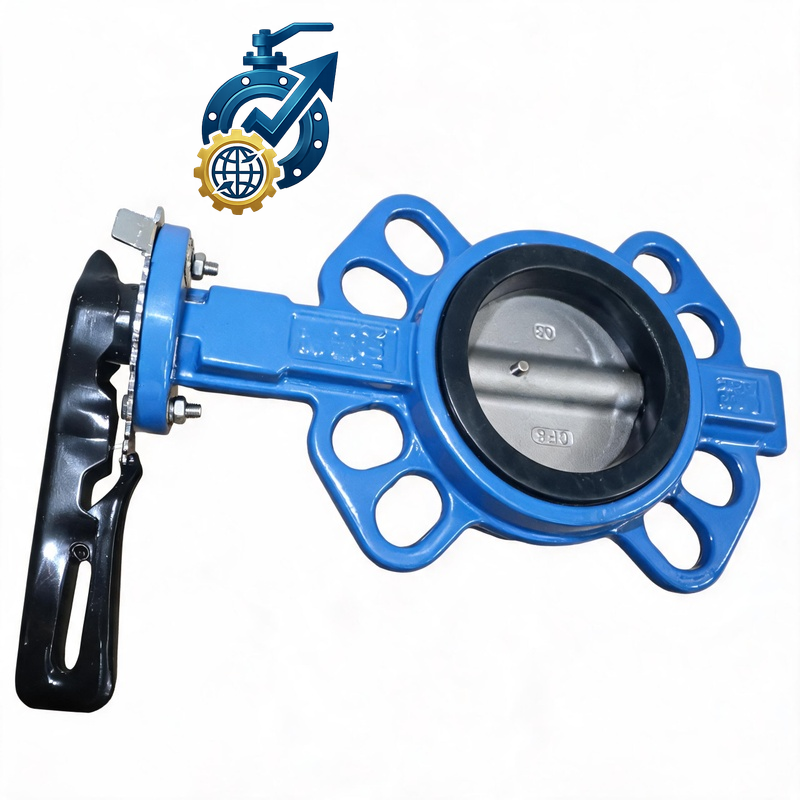

Versatile Operation: Option for manual lever handle, worm gear operator, pneumatic actuator, or electric motorization.
As a premier supplier offering full transparency on China DN50 wafer butterfly valve dimensions, FTJ Valve partners with global EPC contractors, distributors, and valve brands. We provide competitive factory-direct wholesale pricing, custom material configurations, private label OEM branding, and 100% pressure testing according to API 598 prior to shipment.
Need exact dn50 wafer butterfly valve dimensions or custom engineering drawings for your project? Contact the technical team at FTJ Valve today. Request our complete product catalog, dimensional datasheets, and a fast, competitive quotation for your B2B purchasing requirements!
