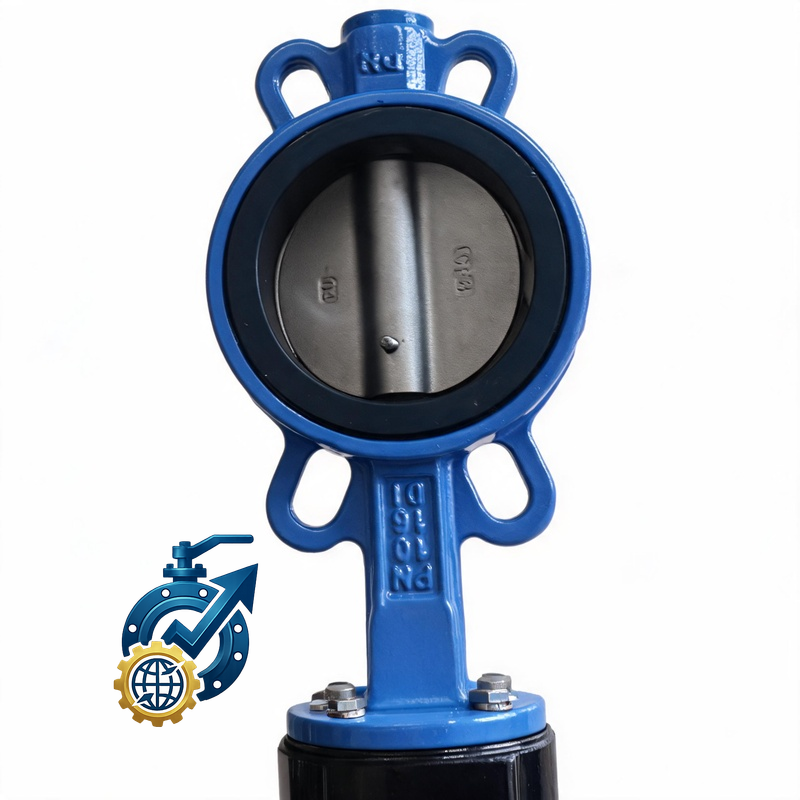

Comprehensive SS316 Wafer Butterfly Valve Dimensions & Technical Specifications

Selecting the right flow control component requires absolute precision in piping layout and installation. As a leading manufacturer in China, FTJ Valve provides full-range SS316 wafer butterfly valve dimensions engineered to meet strict international standards, including API 609, ISO 5752, EN 558, and ASME B16.10.

Whether you are designing a desalination plant, handling corrosive chemical media, or building marine fluid systems, our high-grade Stainless Steel 316 (CF8M) wafer butterfly valves deliver exceptional sealing, compact face-to-face dimensions, and long-term operating durability.

---

Standard Dimensions & Size Range (2" to 48" / DN50 to DN1200)

Our China SS316 wafer butterfly valve dimensions are designed to fit seamlessly between ANSI Class 150, PN10, PN16, and JIS 10K flanges. The ultra-compact wafer design significantly minimizes structural weight and piping footprint without sacrificing pressure retention.

Nominal Size (Inch)	Nominal Size (DN)	Face-to-Face L (mm)	Top Flange ISO 5211	Shaft Diameter (mm)	Approx. Weight (kg)
2"	DN50	43	F05 / F07	12.6	3.2
3"	DN80	46	F05 / F07	12.6	4.1
4"	DN100	52	F07	15.8	5.8
6"	DN150	56	F07 / F10	19.0	8.5
8"	DN200	60	F10	22.2	13.5
10"	DN250	68	F10 / F12	28.6	21.0
12"	DN300	78	F12	31.8	32.5

Key Technical Features of FTJ SS316 Wafer Butterfly Valves

• Superior Corrosion Resistance (CF8M / SS316): Molybdenum addition ensures outstanding performance against chlorides, acids, and harsh chemical solutions.

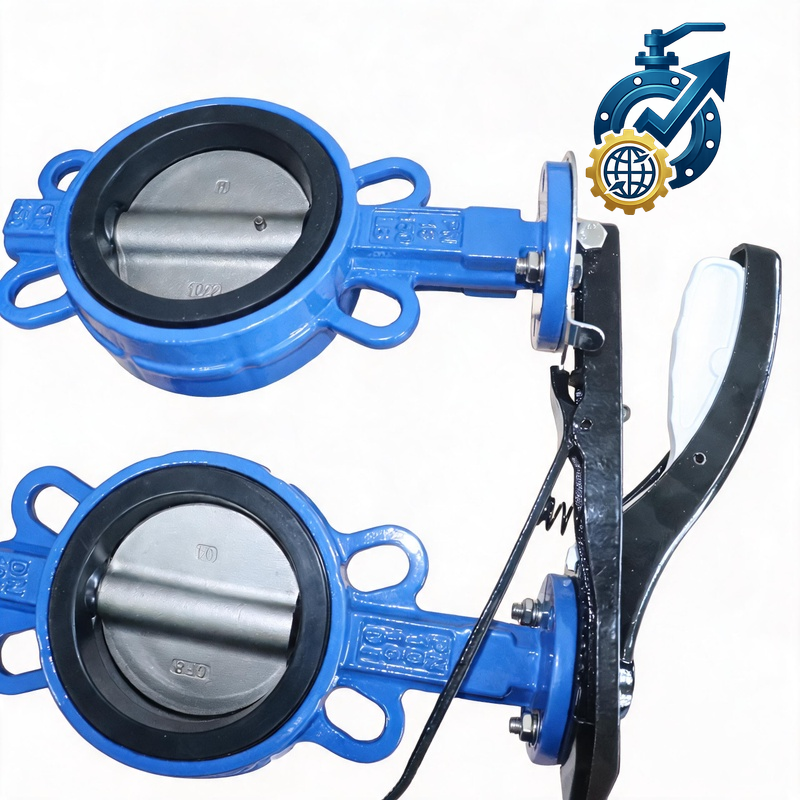

• ISO 5211 Direct Mounting Pad: Enables fast and hassle-free automation with pneumatic actuators, electric motors, or manual gear operators.
• Flexible Sealing Configurations: Available with resilient EPDM, NBR, Viton (FKM), or PTFE/RTFE seats to match exact pressure and temperature parameters.
• Low Operating Torque: Precision-machined disc edges and optimized shaft dimensions reduce friction, lowering operational energy demands.

---

Why Source SS316 Wafer Butterfly Valves from China (FTJ Valve)?

As a trusted source for China SS316 wafer butterfly valve dimensions and OEM manufacturing, FTJ Valve combines advanced CNC precision machining with rigorous quality verification:

1. Strict Quality Assurance: 100% shell and seat pressure testing according to API 598 standards before dispatch.
2. Complete Material Traceability: EN 10204 3.1 chemical & mechanical mill test certificates provided with every shipment.
3. Global Compliance: Certified under ISO 9001, CE PED, and SIL standards for smooth global project integration.
4. Custom OEM Solutions: Customized face-to-face length, stem extension, or high-temperature seat materials tailored to your project blueprints.

---

Request Technical Datasheets & CAD Drawings

Need precise 2D/3D CAD models or exact ss316 wafer butterfly valve dimensions for your piping design?



Contact the engineering team at FTJ Valve today to request full technical spec sheets, torque charts, and competitive factory-direct quotes for your upcoming project.
