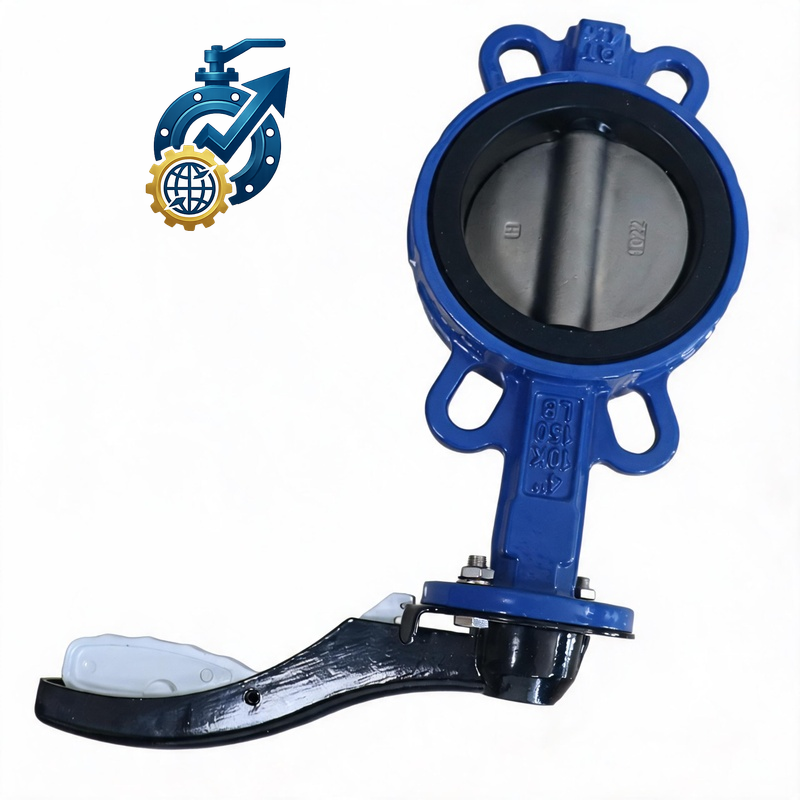

Looking for a reliable, corrosion-resistant flow control solution? Our 10-inch SS316 wafer butterfly valve is engineered for high-performance industrial applications, offering exceptional durability in harsh chemical, water treatment, and marine environments.
Designed to fit seamlessly between international flange standards (ANSI, DIN, JIS), here are the standard dimensions for our 10" (DN250) wafer butterfly valve:
Nominal Diameter: 10 Inch / DN250
Face-to-Face Dimension (L): ~68 mm (ISO 5752 short series / ASME B16.10)
Outside Diameter of Body (D): ~320 mm
Top Flange Pad (ISO 5211): F10 / F12 (Ready for direct actuation)
Working Pressure: PN10 / PN16 / Class 150
Premium Material Integrity: The CF8M (SS316) disc and body ensure superior resistance to pitting and acid corrosion compared to standard SS304.
Space-Saving Wafer Design: The ultra-compact face-to-face dimension minimizes pipeline space, reduces overall system weight, and lowers installation costs.
Zero-Leakage Sealing: Equipped with high-grade PTFE or EPDM seats, delivering a bi-directional bubble-tight shutoff.
Versatile Automation: Features an ISO 5211 mounting pad for effortless integration with pneumatic or electric actuators.
As a leading B2B valve manufacturer, we provide certified, torrent-tested industrial valves tailored to your project blueprints.
Welcome to FTJ Valves, your premier industrial destination for high-performance flow control solutions. As a dedicated manufacturer in China, we specialize in engineering robust, corrosion-resistant valves tailored for demanding industrial applications. On this category page, you will find comprehensive technical data, including precise 10 inch ss316 wafer butterfly valve dimensions, designed to help global engineers and procurement managers seamlessly integrate our products into their piping systems.
When managing large-scale fluid systems in chemical processing, marine engineering, or water treatment, accuracy is paramount. Our standard china 10 inch ss316 wafer butterfly valve dimensions strictly adhere to international standards such as ASME B16.5, DIN, and JIS. The compact wafer-style design features a short face-to-face dimension, which drastically reduces the structural weight of the piping network while saving valuable installation space.
By upgrading to our CF8M/SS316 stainless steel disc and body options, your system gains superior resistance against pitting and crevice corrosion under high-temperature and high-pressure conditions. Every China 10 inch ss316 wafer butterfly valve dimensions datasheet we provide includes exact face-to-face lengths, top flange drilling configurations for manual or automated actuators, and precise bolt hole alignments to ensure a perfect fit between your existing flanges.
As a trusted B2B supplier, FTJ Valves bridges the gap between premium manufacturing and cost-efficiency. Our facility utilizes advanced CNC machining and rigorous pressure testing to ensure bubble-tight sealing and long-term operational reliability.
Premium Material Integrity: We use authentic SS316 (CF8M) to guarantee exceptional chemical stability and durability.
Engineering Expertise: We provide complete 2D/3D CAD drawings matching our china 10 inch ss316 wafer butterfly valve dimensions to simplify your project planning.
Flexible B2B Customization: From specialized seat materials (PTFE, EPDM, Viton) to custom pressure ratings (Class 150, PN10, PN16), we customize to your specifications.
Global Logistics & OEM Support: We offer reliable bulk shipping, fast turnaround times, and comprehensive OEM/ODM manufacturing services for international distributors.
Choosing the right valve begins with verifying the correct structural specifications. If you need full blueprints or custom modifications regarding our China 10 inch ss316 wafer butterfly valve dimensions, our technical engineering team is ready to assist.
Browse our inventory below, or contact FTJ Valves directly to receive a competitive, factory-direct wholesale quote and accelerate your project timeline.
