Looking for cost-effective dn200 ductile iron wafer butterfly valve dimensions for standard industrial applications? FTJ VALVES supplies global B2B buyers with premium 8-inch ductile iron wafer butterfly valves compliant with international ANSI, DIN, and JIS standards. Engineered with high-strength GGG50 ductile iron bodies and precision-molded resilient seats, our valves ensure 100% bi-directional bubble-tight shut-off in high-pressure piping—making them the premier choice for water treatment, HVAC, and firefighting systems.
As a leading manufacturer in China, our standard china dn200 ductile iron wafer butterfly valve dimensions feature a compact face-to-face length of just 60mm, offering an ultra-lightweight design and minimal flow resistance. Whether you require bulk OEM private labeling, custom project configurations, or wish to request exact 2D/3D CAD dimensional drawings and factory-direct quotes, FTJ’s expert engineering team is ready to provide one-stop support to ensure your projects are delivered on time!

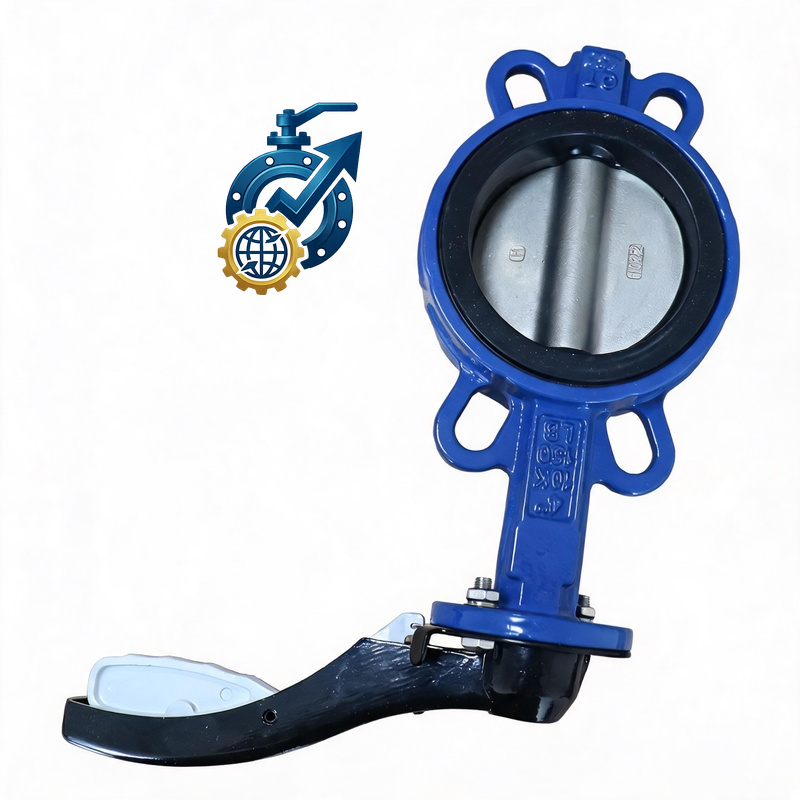

For industrial valve buyers, project engineers, and fluid control system designers, precise structural parameters are critical to ensuring perfect equipment compatibility and safe line operation. As a leading industrial valve manufacturer in China, FTJ VALVES is dedicated to providing high-quality DN200 (8-inch) Ductile Iron Wafer Butterfly Valves to our global B2B clients. Whether you are replacing active valves or specifying standard piping configurations for new construction, our accurate china dn200 ductile iron wafer butterfly valve dimensions will align seamlessly with your engineering drawings and installation spaces.
To assist you with piping system layout and spatial planning, here are the core dimensional specifications of FTJ’s DN200 wafer butterfly valves, conforming to international standards such as ANSI Class 150, DIN PN10, and PN16:
| Core Dimension Item | Nominal Size | Face-to-Face (L) | Body Height (H1 / H2) | Flange Fitting | Reference Weight |
| Standard Values | DN200 / 8" | 60 mm (2.36") | 205 mm / 238 mm | PN10 / PN16 / ANSI150 | 11.0 kg - 16.3 kg |

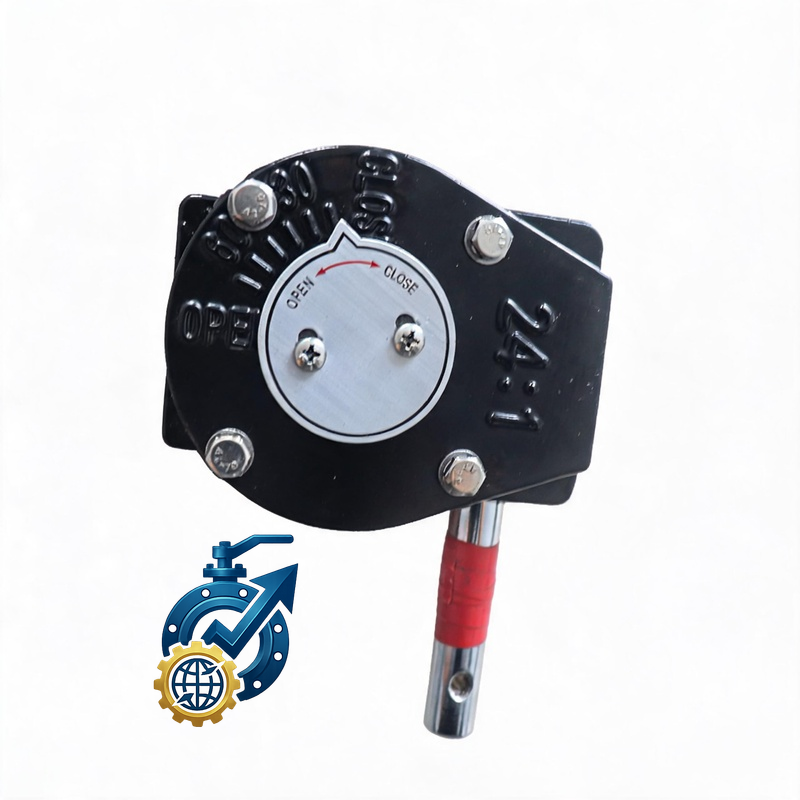

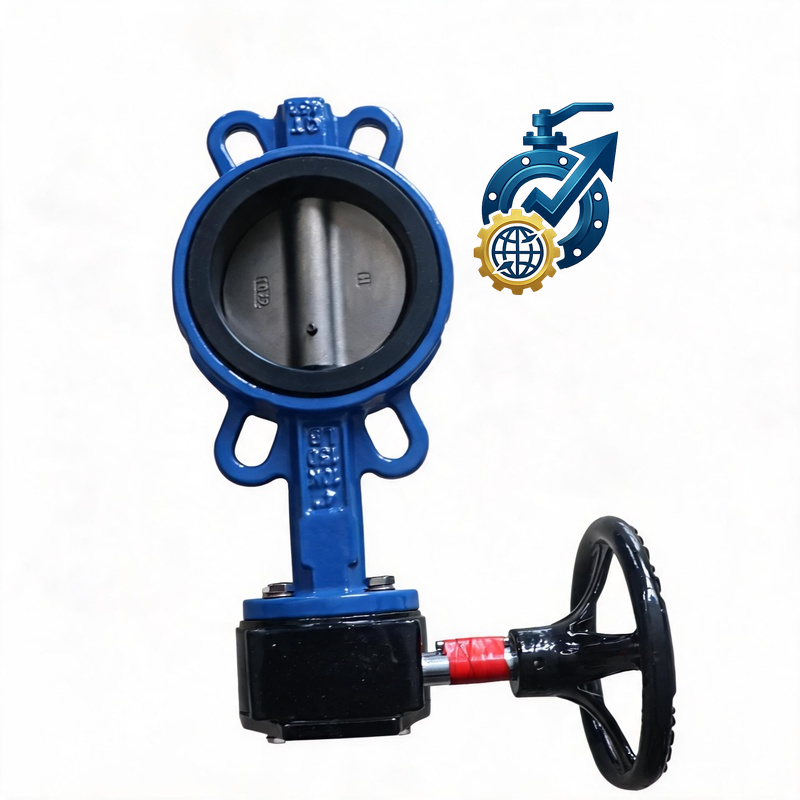

(Note: Exact body dimensions can be customized based on your operation mechanism—such as bare shaft, lever, gear operator, pneumatic, or electric actuator. FTJ provides dedicated 2D PDF and CAD drawings for your batch orders.)
FTJ VALVES operates its own advanced casting and machining production lines in China's premier pump and valve manufacturing hub. Our 8-inch ductile iron wafer butterfly valves offer distinct advantages in the market:
High-Strength Ductile Iron Body (QT450-10/GGG50): Compared to standard grey cast iron, our GGG50 body delivers significantly higher tensile strength and pressure ratings, effectively resisting water hammer and pipeline vibrations.
Superior Sealing Performance (EPDM/NBR/Viton): Utilizing a phenolically backed replaceable liner, our resilient seats ensure a 100% bi-directional bubble-tight shut-off, meeting the strict requirements of water treatment, HVAC, firefighting, and industrial fluid systems.
Precision Engineered Disc: Available in Stainless Steel 304/316, nickel-plated ductile iron, or nylon-coated options, ensuring optimized flow coefficients (Cv values) and minimum pressure drop.
As an established OEM valve supplier, we understand the core pain points of global industrial procurement: quality assurance, delivery compliance, and cost efficiency. We don't just supply standard China dn200 ductile iron wafer butterfly valve dimensions; we offer tailor-made solutions with customized branding, material options, and paint finishes. Adhering strictly to ISO 9001 and CE certifications, every single valve undergoes 100% pneumatic and hydrostatic pressure testing before shipment.
Partner with FTJ to secure your supply chain with premium valves delivered on time. [Contact our engineering team today] for instant pricing and a comprehensive dimensional datasheet!
